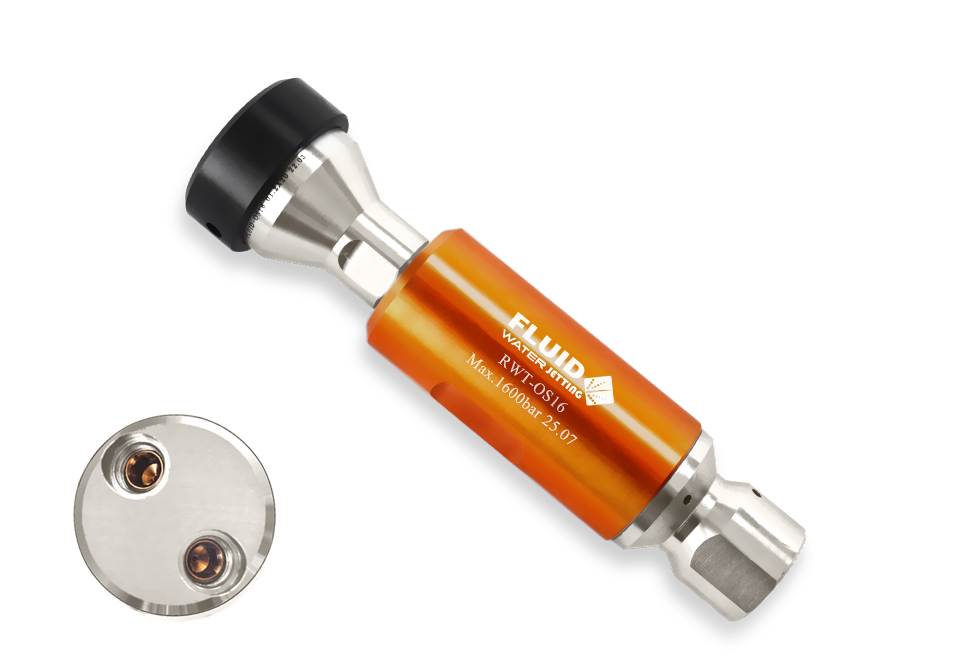

RWT-OS16
Product parameters
FEATURES:
■ Magnetic speed control, no need of regular maintenance.■ Light weight, easy to operate.
SPECIFICATIONS
|
Max. operating pressure： |
1600bar |
|
Flow range： |
10~30 l/min |
|
Rotation Speed： |
500~2500 rpm |
|
Diameter： |
￠37 mm |
|
Total length: |
168mm |
|
Approx. weight: |
0.78 kg |
|
Connection thread： |
M20*1.5 female or custom-made adapter provided |
|
Sapphire nozzle： |
2* M10*1.5 |
|
Nozzle Size mm* |
Min. Pressure bar* |
Max. Pressure bar* |
Flow Range l/min* |
|
￠0.6*2 |
800 |
1600 |
10~14 |
|
￠0.7*2 |
600 |
1500 |
11~18 |
|
￠0.8*2 |
500 |
1400 |
13~22 |
|
￠0.9*2 |
400 |
1000 |
15~24 |
|
￠1.0*2 |
300 |
800 |
16~27 |
|
￠1.1*2 |
250 |
600 |
18~28 |
|
￠1.2*2 |
200 |
500 |
19~30 |
Note: When manually operating high pressure guns and lances, the reaction force
on the axis should not exceed 250 N. A shoulder stock is required if the reaction
force exceeds 150 N.
