Max. Operating pressure：

2000bar

Max. Flow rate：

75 l/min

Rotation speed：

500~1500rpm

Max. Outer diameter：

ø44 mm

Length：

195 mm

Connection thread：

1-1/8-12UNF Female
Or adaptor provided：
● M24X1.5 male
● 3/8 NPT Female (Max 1035bar)
● 1/2 NPT Female(Max 1035bar

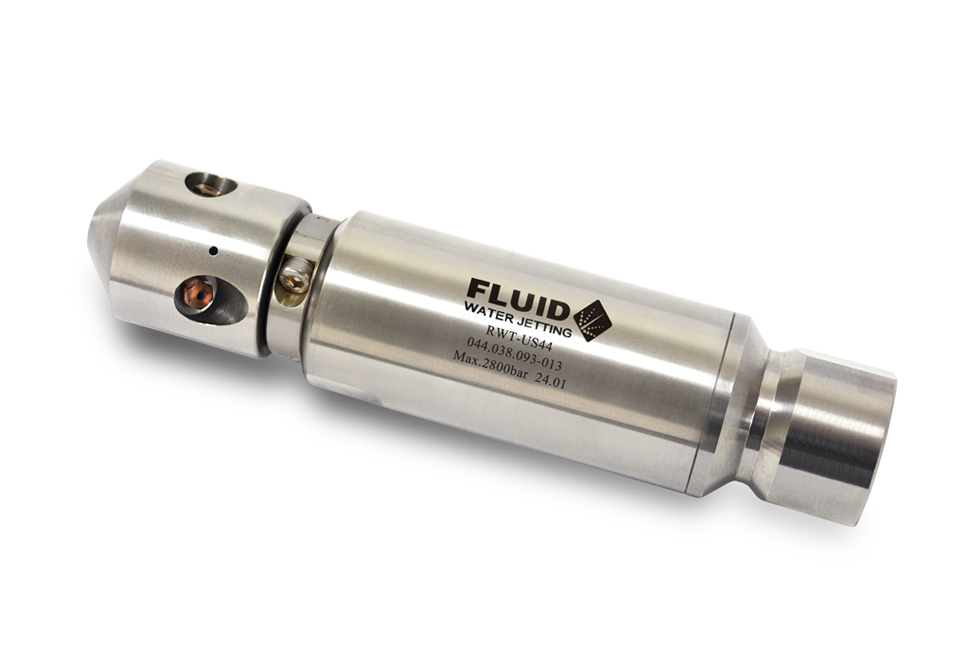

Max. Operating pressure：

2800bar

Max. Flow rate：

42 l/min

Rotation speed：

500~1500rpm

Max. Outer diameter：

ø44 mm

Length：

195 mm

Connection thread：

1-1/8-12 UNF Female
