NEW UBD TUBE CLEANING NOZZLES
Product parameters
NEW UBD TUBE CLEANING NOZZLES (Max.1500bar)

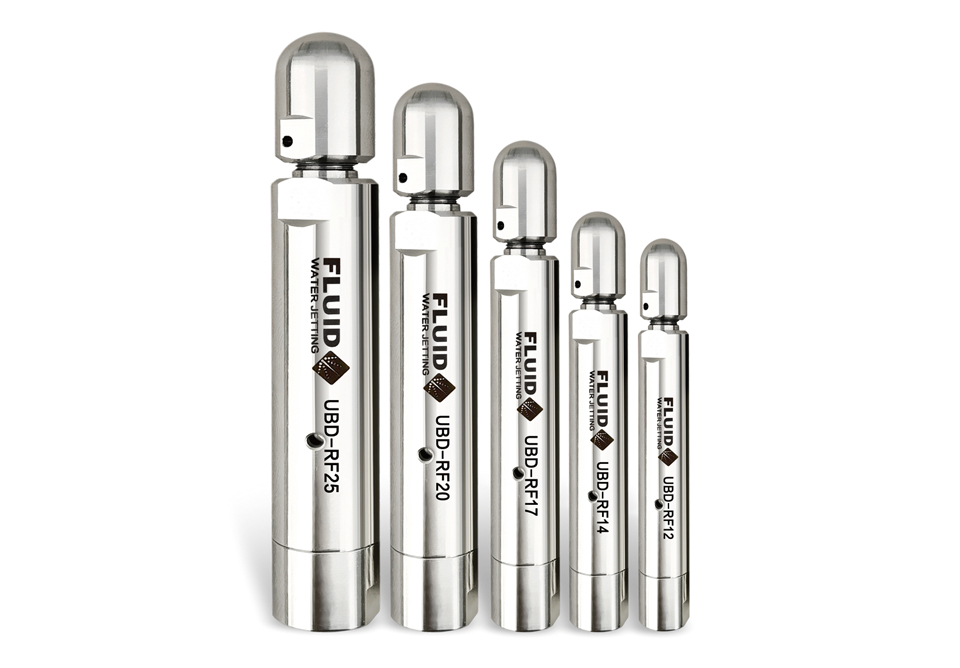

UBD-RF12/14/17/20/25
UBD is an efficient tube cleaning nozzle, engineered to deliver strong water jetting impact through its lower rotational speed and minimal pressure loss.
SPECIFICATIONS
|
Body Type |
Connecting |
Flow Range |
External |
Suitable i/d |
|
UBD-RF12 |
1/4-28 LH/RH M7 1/16-27 NPT(Max.1035bar) M8X1 M8 |
11~40 l/min |
12mm |
15~22mm |
|
UBD-RF14 |
1/4-28 LH/RH M8X1 M8 3/8-24 LH/RH 1/8 BSPP M10X1 1/8 NPT(Max.1035bar) |
11~55 l/min |
14mm |
17~26mm |
|
UBD-RF17 |
3/8-24 LH/RH 1/8 BSPP M10X1 1/4 BSPP 1/4 NPT(Max.1035bar) |
12~60 l/min |
17mm |
20~32mm |
|
UBD-RF20 |
M10X1 1/4 BSPP 1/4 NPT(Max.1035bar) 9/16-18 LH/RH |
13~67 l/min |
20mm |
23~38mm |
|
UBD-RF25 |
M10X1 1/4 NPT(Max.1035bar) 3/8-24 LH 9/16-18 LH/RH 3/8 NPT(Max.1035bar) |
19~76 l/min |
25mm |
30~50mm |
